ICON™ PATALPOS TERMOSTATAS DIAL, POTINKITIS, 230V

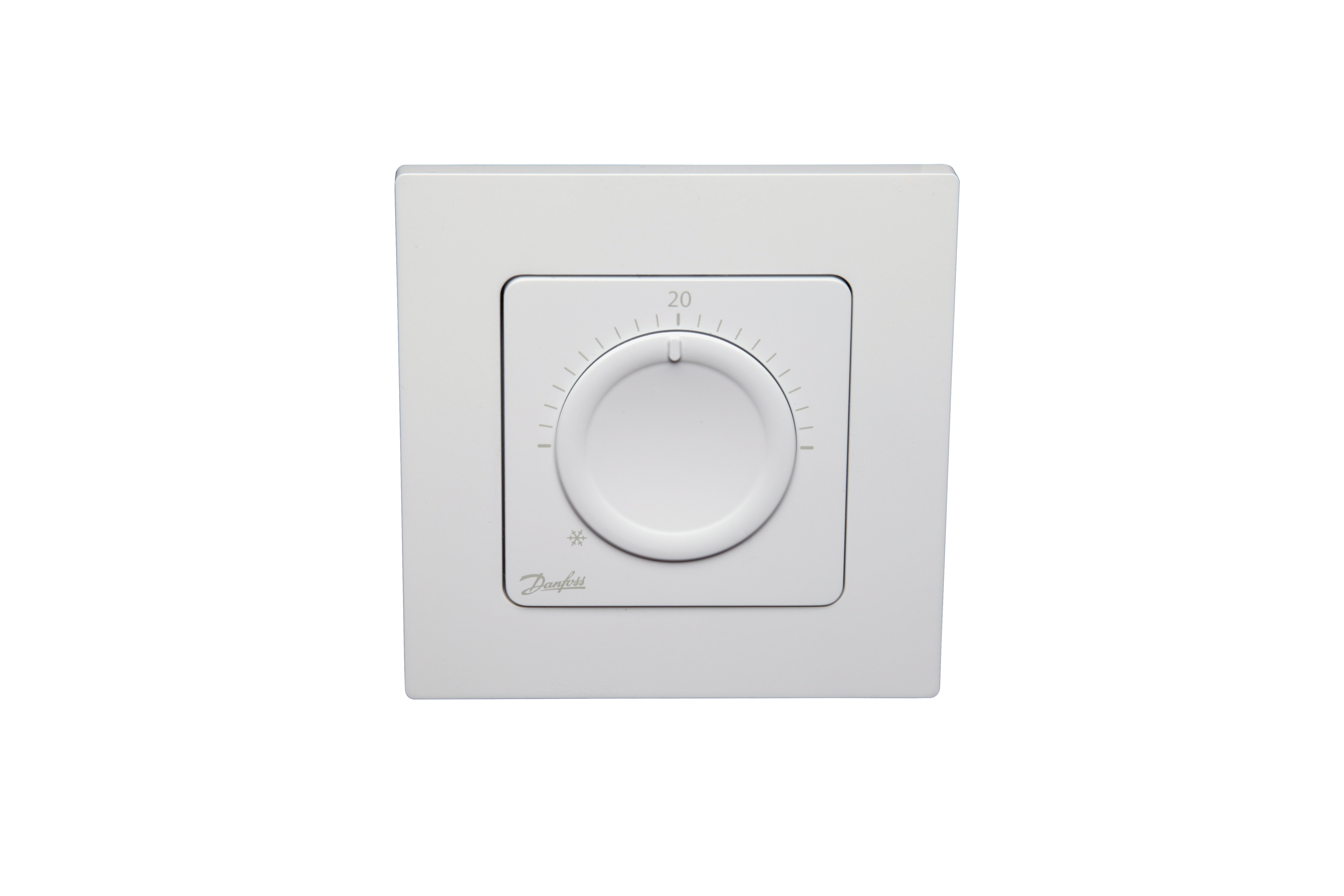

Danfoss Icon RT 230 V wall-mounted thermostat with rotary dial operates on mains voltage and can be used as a standalone thermostat or in conjunction with a 230 V Icon switching box. The thermostat uses a relay output and can control up to five thermal actuators. The desired room temperature can be set using the selection dial. Temperature range: 5 to 30 °C. Part of the Danfoss Icon product family. Also see main controller 088U1031 and thermal actuator 088H3112.

Features

• Gross weight: 0.12 kg
• Net weight: 0.1 kg
• Timing: no
• Installation: wall-mounted
• Automatic balancing: no
• Room temperature limitation: yes
• IP protection class: IP 21
• Cooling input: no
• Dual function: no
• Capacitive touch: no
• Floor sensor possible: no
• Connections: wired 230 V
• Thermostat type: rotary dial room thermostat
• Heat recovery: yes
• Heating control: yes
• Heater actuator: no
• Temperature setting range [Max.]: 30 °C
• Temperature setting range [Min.]: 5 °C
• Temperature decrease button: no
• Adaptive learning function: no
• NC/NO: yes
• Absence input: no
• PWM: no
• Compatible with switch frames: yes
• Application control disabled: no
• Supply voltage: 230 V
• Maximum number of actuators: 5
• Type: Danfoss Icon
• Valve jump function: no
• Quiet switch operation: yes

This product description is an automated translation of the original Finnish description.
